SP1 Syringe Pump

 Tip: Click on image to enlarge

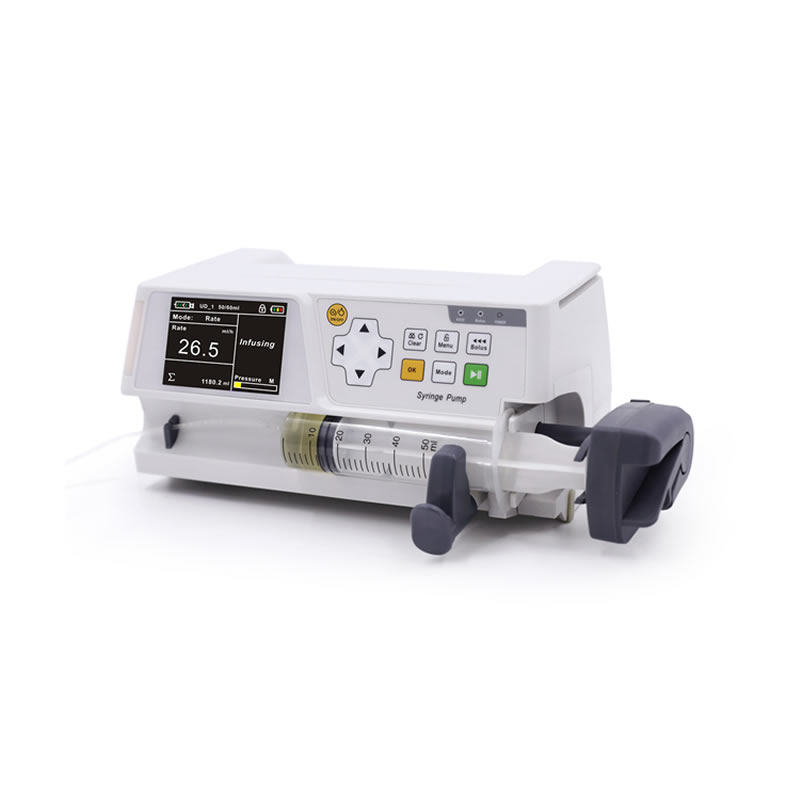

Stackable syringe pump /SP1

Features:

• Manual or Automatic Bolus function.

• Vertical & Horizontal mounting clamp.

• Anti-bolus system.

• DPS Occlusion Pressure display.

• 2000 events stored can be checked and downloaded.

• Large color TFT display with adjustable brightness.



PARAMETER

SPECIFICATION

Applicable syringes

5ml,10ml,20ml,30ml,50ml,60ml of any standard

Accuracy

+/- 2% with correct calibration

Rate mode

50ml(60ml):0.1ml/h-2000.0ml/h (0.1ml/h or 1ml/h step)

30ml:0.1ml/h-1200.0ml/h (0.1ml/h or 1ml/h step)
20ml:0.1ml/h-800.0ml/h (0.1ml/h or 1ml/h step)
10ml:0.1ml/h-400.0ml/h (0.1ml/h or 1ml/h step)

5ml: 0.1~200ml/h (0.1ml/h or 1ml/h step)

(Programmable 0.01ml/h~9999.9ml/h)

Time Mode

SOL. VOL:0.1-9999.9ml (0.1ml step)
TIME:00:01-99:59min (1min step)

Dose Mode:

Volume:0.1-999.9ml(0.1ml step)
DRUG MASS:0.1-999.9mg 0.1mg step)
DOSE:0.001-9999ug/kg/min(0.001ug/kg/min step)
WEIGHT:0.1-300kg(0.1kg the least step)

Dose unit: ng/kg/min, ug/kg/min, mg/kg/min, g/kg/min, ug/kg/h,

mg/kg/h,g/kg/h,ug/min,mg/min,g/min,ug/h,mg/h,g/h,U/min,U/h,IU/h,U/kg/h,ml/h

Total Volume Range

0.1-9999.9ml (0.1 ml step)

Purge Rate

50ml(60ml):1500.0ml/h,

30ml:1200.0ml/h,

20ml:800.0ml/h

10ml:400.0ml/h, 5ml: 200ml/h

Programmable and adjustable

KVO Rate

0.1~5.0 ml/h, Programmable and adjustable

DPS dynamic pressure



Three levels setting LOW (60(±15)kPa), MEDIUM (90(±15)kPa)

 or HIGH (120(±15) kPa)

Alarms

Syringe Holder Loose ,Syringe Plunger Disengagement, Syringe Flange Insertion Error ,Syringe Not Calibrated, Occlusion, Syringe Empty, Rate Abnormal, Battery Empty, No Battery, Infusion Complete, Syringe Near Empty, No Action, Battery Low

Three levels of alarm volume LOW, MEDIUM or HIGH

Bolus Rate

5ml: 0.1~200ml/h,10ml:0.1-400ml/h,20ml:0.1-800ml/h,

30ml:0.1-1200ml/h,50ml(60ml):0.1-2000ml/h

Programmable and adjustable, Automatic/Manual bolus available

Bolus Volume

Range: 1.0~50.0ml, (0.1ml step)

Interface

RS-232

Brightness

1~10 levels can be selected

History records

2000 events stored can be checked and downloaded

Power source

AC power supply: AC 100 to 240V( +/-10%),50/60Hz;

DC Power supply: 12~15V, power>15W;

Built-in Lithium Battery: Rechargeable, 11.1V, 2000mAh.

8 hours of continuous operation

Accessories:

AC power line, Operational manual

Protection Class

Class I, Type CF,IP44

Dimension / N.W

240mm*150mm*117mm , 2.0kg

Packing size/G.W

300mm*260mm*160mm, 3.0KG
