DS-8 BiPAP ST 30

 Tip: Click on image to enlarge

1. Description:

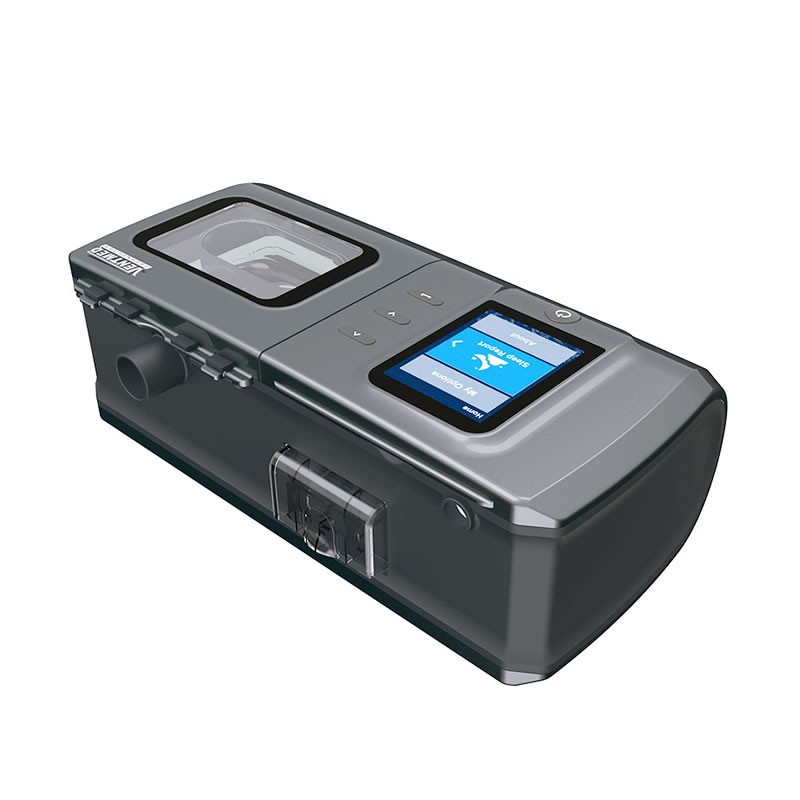

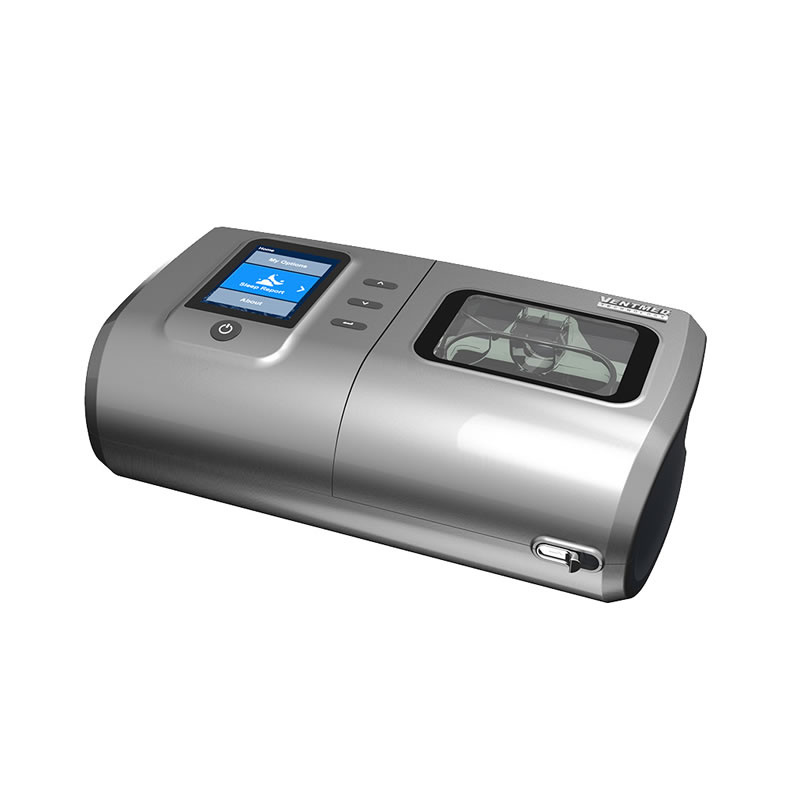

The VentMed Respiratory system is an Auto CPAP device designed for the treatment of adult Obstructive Sleep Apnea (OSA)/Hhypopnea/Snoring.


2. Features:

1. More than 20hr real-time data and more than 1 year used records can be saved.

2. Showing airflow and pressure waves on the screen.

3. SD card for data communication.

4. Combined smart technologies.

5. Contemporary and stylish design for bedroom appeal.

6. EPR(expiratory pressure relief).

7. Auto-Leak Compensation.

8. Auto-Altitude compensation.

9. Alarm for cut down the power.

10. Independent airflow channel.

11. Huge display, 2.8" TFT Screen, show airflow and pressure on the screen.

12. Parameters lock: all the parameters cannot be changed after setting.



3. Packing List

1. Host Device with Integrated Humidifier

2. Full Face Mask or Nasal Mask (Optional)

3. 5 Pieces of Filter Cotton

4. Air Tubing

5. Water Tub

6. SD Card

7. Measuring Cup

8. Power Supply Unit

9. Carry Package

10. User Manual

11. Carton Box



4. Specification

Product Name

DS-6

Model

Auto CPAP

Color

Sliver

Machine Dimensions(cm)

28L x 14W x 9.5H

Carton Dimensions(cm)

38L x 36W x 16H

Gross Weight

1.6KG for the host, 3.9KG included all accessories and packing carton

Power Supply

Input 100-240V, 50-60Hz, 2-1A

Output +24V, 2.5A

Working Mode

CPAP, Auto

Screen

2.8 inch TFT, 320 x 240

Screen Auto Sleep

Auto sleep in 15 minutes, press any button to highlight screen

Over-Temperature Protection

The motor will stop work automatically and buzzle will ring 4 times when the temperature is over

Button Press and Power off

Sound

Yes

Data Storage

SD Card

DC Voltage

24VDC

DC Current

2.0A maximum

Sound

<28db

Pressure Range

4-20cmH2O, auto-adjust

IPAP

4-20 cmH2O

EPAP

 N/A
Pressure CompensationYes
Backup Rate N/A
I/E N/A

Ramp Item

0-60min adjustable 1min/Step

Auto ON

Yes

Auto OFF

Yes

Inspirate Triggle

N/A

Expirate Level

N/A

Inspirate Sensitivity

N/A

Expiration Pressure Relief(EPR)

Yes

Auto-Altitude

Yes

Leak Compensation

Yes
Awake DetectionYes
Breath Event DetectionYes
Auto Pressure TitrationYes

Mask Off Alarm

When the mask is off, will Beep till mask put on or power off.

Power Off AlarmIf power is off when the machine is working, will make a warning sound over 30 seconds.
Water Capacity220ML max
Humidifier Level0-5 level
HumidifierIntegrated Heated Humidifier

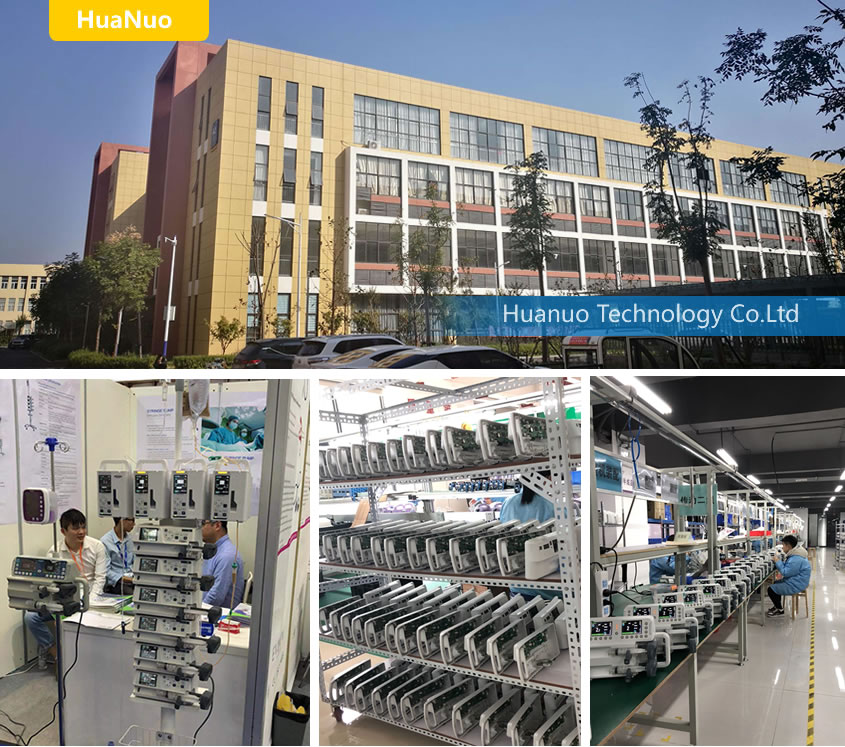

Factory Photos
