1. Description:

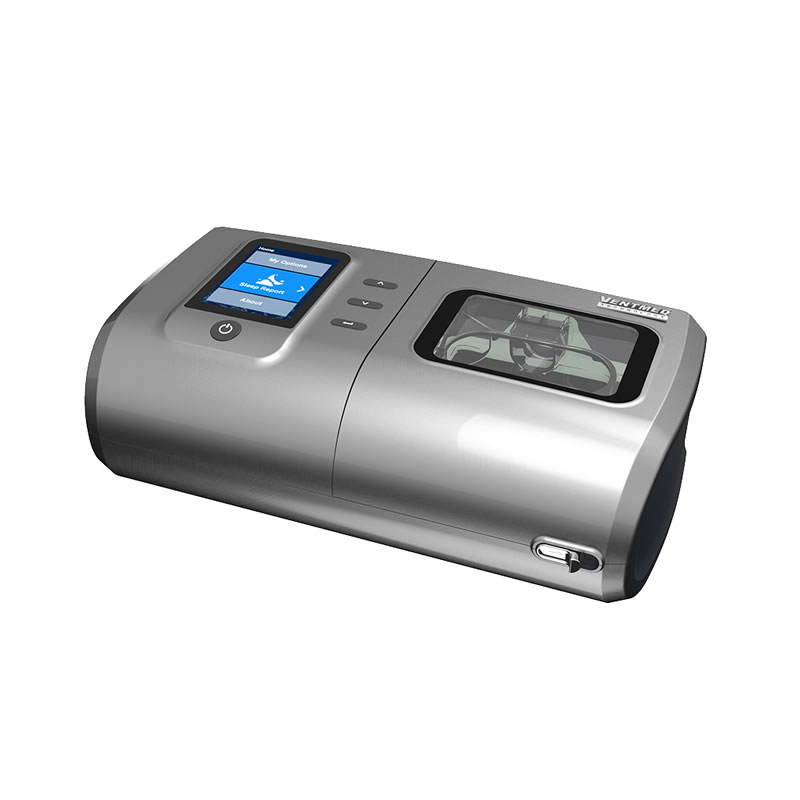

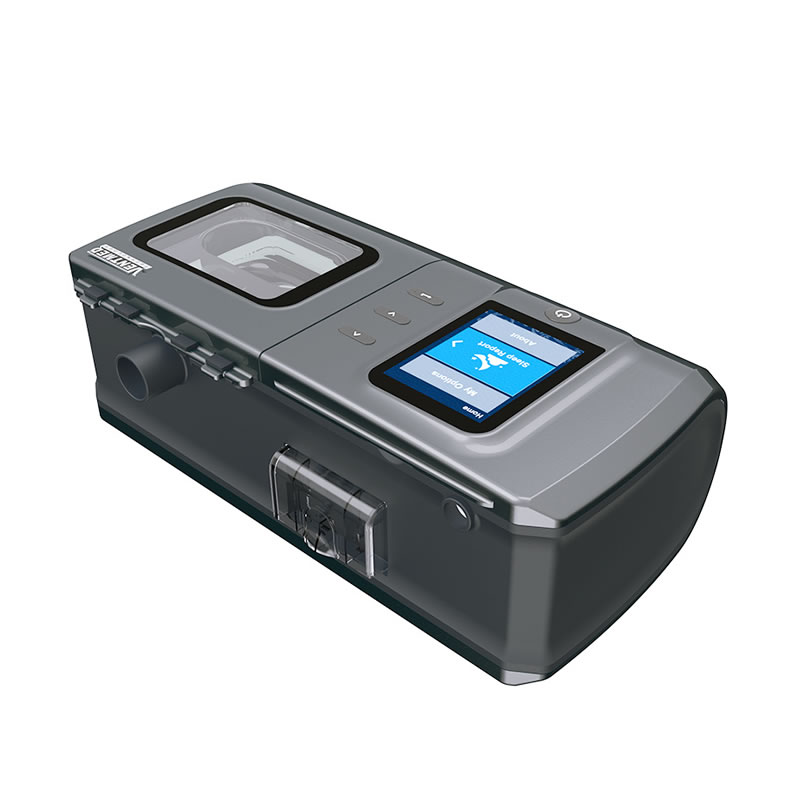

The VentMed Respiratory system is an Auto CPAP device designed for the treatment of adult Obstructive Sleep Apnea (OSA)/Hhypopnea/Snoring.
2. Features:
1. More than 20hr real-time data and more than 1 year used records can be saved.
2. Showing airflow and pressure waves on the screen.
3. SD card for data communication.
4. Combined smart technologies.
5. Contemporary and stylish design for bedroom appeal.
6. EPR(expiratory pressure relief).
7. Auto-Leak Compensation.
8. Auto-Altitude compensation.
9. Alarm for cut down the power.
10. Independent airflow channel.
11. Huge display, 2.8" TFT Screen, show airflow and pressure on the screen.
12. Parameters lock: all the parameters cannot be changed after setting.
3. Packing List
1. Host Device with Integrated Humidifier
2. Full Face Mask or Nasal Mask (Optional)
3. 5 Pieces of Filter Cotton
4. Air Tubing
5. Water Tub
6. SD Card
7. Measuring Cup
8. Power Supply Unit
9. Carry Package
10. User Manual
11. Carton Box
4. Specification
Product Name | DS-6 |
Model | Auto CPAP |
Color | Sliver |
Machine Dimensions(cm) | 28L x 14W x 9.5H |
Carton Dimensions(cm) | 38L x 36W x 16H |
Gross Weight | 1.6KG for the host, 3.9KG included all accessories and packing carton |
Power Supply | Input 100-240V, 50-60Hz, 2-1A Output +24V, 2.5A |
Working Mode | CPAP, Auto |
Screen | 2.8 inch TFT, 320 x 240 |
Screen Auto Sleep | Auto sleep in 15 minutes, press any button to highlight screen |
Over-Temperature Protection | The motor will stop work automatically and buzzle will ring 4 times when the temperature is over |
Button Press and Power off Sound | Yes |
Data Storage | SD Card |
DC Voltage | 24VDC |
DC Current | 2.0A maximum |
Sound | <28db |
Pressure Range | 4-20cmH2O, auto-adjust |
IPAP | 4-20 cmH2O |
EPAP | N/A |
| Pressure Compensation | Yes |
| Backup Rate | N/A |
| I/E | N/A |
Ramp Item | 0-60min adjustable 1min/Step |
Auto ON | Yes |
Auto OFF | Yes |
Inspirate Triggle | N/A |
Expirate Level | N/A |
Inspirate Sensitivity | N/A |
Expiration Pressure Relief(EPR) | Yes |
Auto-Altitude | Yes |
Leak Compensation | Yes |
| Awake Detection | Yes |
| Breath Event Detection | Yes |
| Auto Pressure Titration | Yes |
Mask Off Alarm | When the mask is off, will Beep till mask put on or power off. |
| Power Off Alarm | If power is off when the machine is working, will make a warning sound over 30 seconds. |
| Water Capacity | 220ML max |
| Humidifier Level | 0-5 level |
| Humidifier | Integrated Heated Humidifier |
